SUPER Duplex Steel UNS S32750 PLATES / SHEETS | UNS S32750 COIL


Duplex STEEL & ENGINEERING is a leading manufacturer, exporter & supplier of a wide range of high-quality Super Duplex UNS S32750 Plates , also known as 2205 steel, and the most widely used Duplex (ferritic/austenitic) stainless steel grade. We offer Super Duplex 2507 Sheets that find applications due to excellent corrosion resistance and high strength made from high-quality standard raw materials and are outlined according to national and universal guidelines.

 The superior mechanical power of Super Duplex Steel UNS S32750 is a critical aspect. It has a tensile strength of approximately 800 MPa, exceeding traditional stainless steel. This makes it a preferred material for projects requiring toughness and reliability, including offshore oil and gas projects, processing plants for chemicals, and desalination systems for saltwater. UNS S32750 is renowned for its remarkable resistance to corrosion, which covers both the forms of general corrosion and specific ones like pitting and crevice corrosion. This resilient property is attributed to high levels of chromium, molybdenum, and nitrogen within the alloy that develops a defensive layer on its surface. This protective coating prevents any erosion or damage.

super-duplex-f53-sheet-plate-coils

Super Duplex 2507 Sheets, UNS S32750 Hot Rolled Plates in Nigeria, Super Duplex ASTM A240 UNS S32750 sheets, UNS S32750 Super Duplex Sheets in Saudi Arabia, Alloy 2507 Cold Rolled Plates in Manufacturer in India.

ASME SA240 Super Duplex S32750 Plates exhibits exceptional resilience to stress corrosion cracking, a form of corrosion experienced in high-pressure parts and components like pipelines and pressure vessels. This corrosion-resistant feature makes it the perfect choice for elements/applications involving notable pressure, as in the oil and gas industry. WNR. 1.4410 Sheets is close to the density of other stainless steels, approximately 7.8 g/cm3. Its high melting point of roughly 1350°C makes it handy for applications with elevated temperatures. Super Duplex Stainless steels, which combine high strength and excellent corrosion resistance in many environments, have found applications in chemical and process industries. Pulp mills, offshore systems, flue gas desulphurization units. The localized corrosion resistance of Super Duplex Coil is close to what is achieved with 6% Mo Super-Austenitic grades.

Our company is very careful when packaging ASTM A240 Stainless Steel 2507 Plates , sheets, and coils to protect them during transit. We use top-of-the-line packaging supplies, for example, wooden crates, cardboard boxes, and bubble wrap, to avoid any harm to the material. Furthermore, we identify each package with fundamental details like the material grade, size, and quantity to ensure our customers receive the right product. Our packaging process ensures that our customers receive their orders in a perfect state and are ready to be used in their applications.

SPECIFICATIONS of SUPER DUPLEX UNS S32750 SHEETS, PLATES & COILS :


Grade Duplex Steel 2507 | UNS S32750
Standard ASTM A240 / ASME SA240
Thickness 0.1mm To 100 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form Sheets, Plates, Coils, Slatting Coils, Perforated Coils

UNS S32750 Super Duplex Hot Rolled Plates in Australia, WNR. 1.4410 Duplex 2507 Sheets, Super Duplex Sheet, Super Duplex ASTM A240 UNS S32750 Sheets in USA, UNS S32750 Super Duplex seamless Slitting Coil Supplier in Mumbai.


TYPE of SUPER DUPLEX UNS S32750 SHEETS, PLATES & COILS:

Super duplex 2507 Sheets
  • Super Duplex 2507 Sheets
  • UNS S32750 Super Duplex Sheets
  • WNR. 1.4410 Sheets
  • ASME SA240 Super Duplex S32750 Sheets
  • ASTM A240 Stainless Steel 2507 Sheets
  • EN 10088 Super Duplex Steel S32750 Sheet
  • SA-240 Super Duplex 2507 Cold Rolled Sheet
  • FCAW SB 2509 Stainless Steel S32750 Sheets
  • Super Duplex S32750 Finish BA NO(8) Sheets

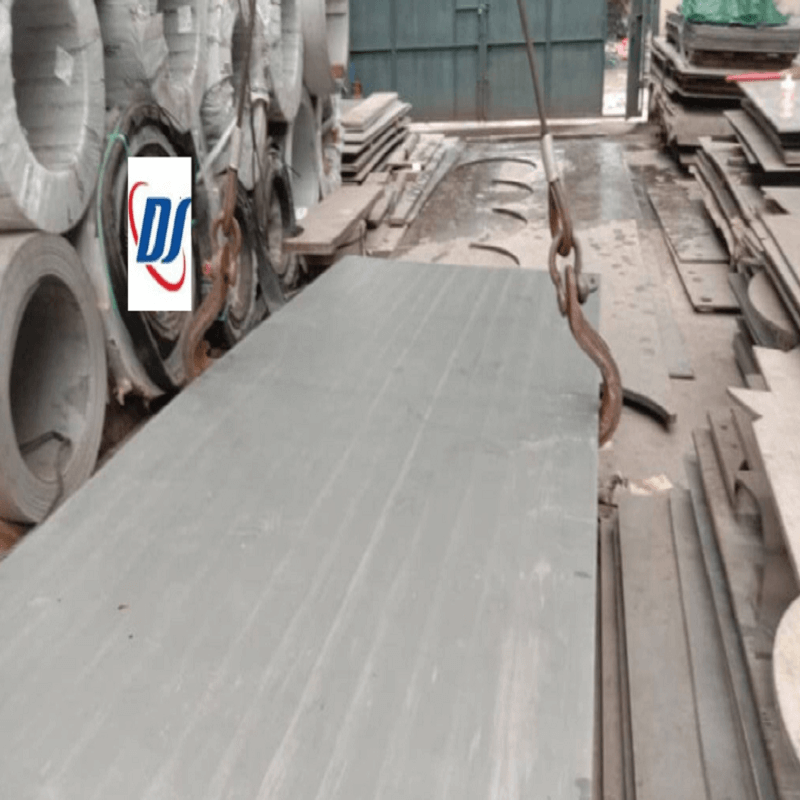

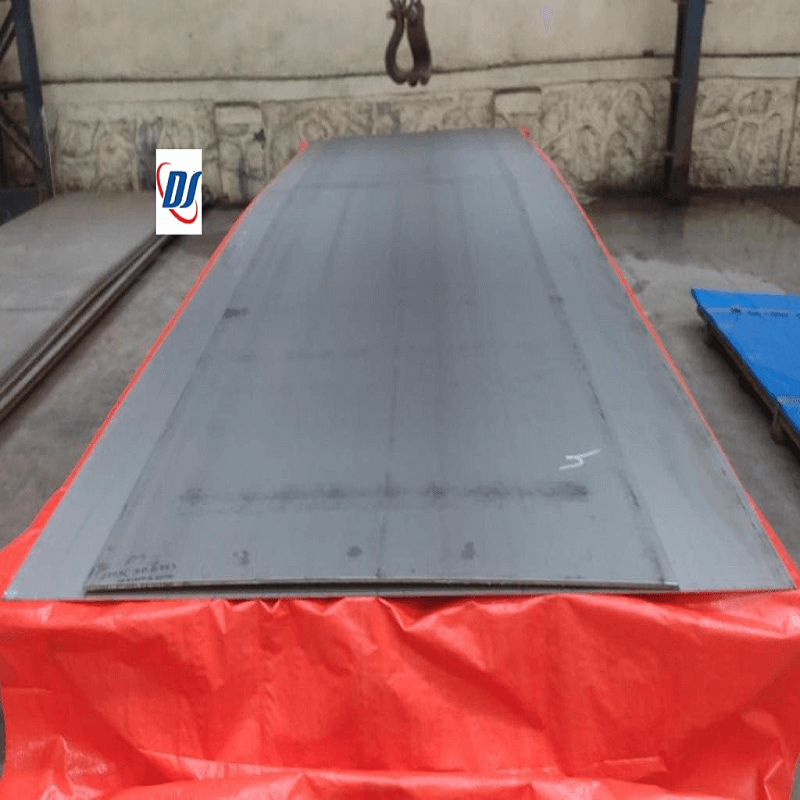

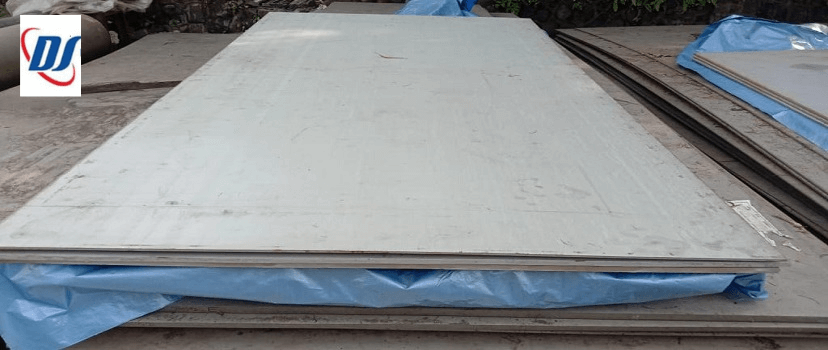

Super duplex 2507 plates
  • Super Duplex 2507 Plates
  • UNS S32750 Super Duplex Plates
  • WNR. 1.4410 Plates
  • ASME SA240 Super Duplex S32750 Plates
  • ASTM A240 Stainless Steel 2507 Plates
  • EN 10088 Super Duplex Steel S32750 Plates
  • SA-240 Super Duplex 2507 Cold Rolled Plates
  • FCAW SB 2509 Stainless Steel S32750 Plates
  • Super Duplex S32750 Finish BA NO(8) Plates

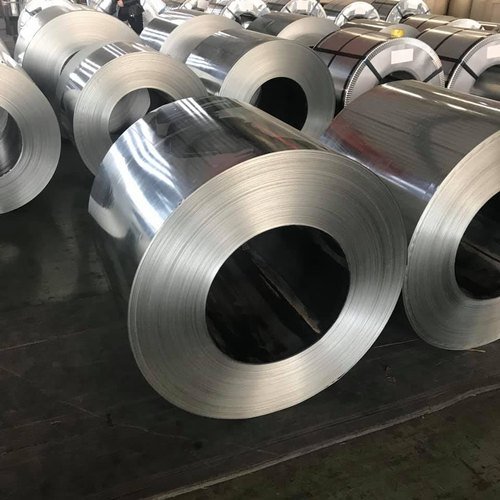

Super Duplex 2507 Coil
  • Super Duplex 2507 Coils
  • UNS S32750 Super Duplex Coils
  • WNR. 1.4410 Coils
  • ASME SA240 Super Duplex S32750 Coils
  • ASTM A240 Stainless Steel 2507 Coils
  • EN 10088 Super Duplex Steel S32750 Coils
  • SA-240 Super Duplex 2507 Cold Rolled Coils
  • FCAW SB 2509 Stainless Steel S32750 Coils
  • Super Duplex S32750 Finish BA NO(8) Coils
Super Duplex 2507 Foils
  • Super Duplex 2507 Foils
  • UNS S32750 Super Duplex Foils
  • WNR. 1.4410 Foils
  • ASME SA240 Super Duplex S32750 Foils
  • ASTM A240 Stainless Steel 2507 Foils
  • EN 10088 Super Duplex Steel S32750 Foils
  • SA-240 Super Duplex 2507 Cold Rolled Foils
  • FCAW SB 2509 Stainless Steel S32750 Foils
  • Super Duplex S32750 Finish BA NO(8) Foils
Super Duplex 2507 Rolls
  • Super Duplex 2507 Rolls
  • UNS S32750 Super Duplex Rolls
  • WNR. 1.4410 Rolls
  • ASME SA240 Super Duplex S32750 Rolls
  • ASTM A240 Stainless Steel 2507 Rolls
  • EN 10088 Super Duplex Steel S32750 Rolls
  • SA-240 Super Duplex 2507 Cold Rolled Rolls
  • FCAW SB 2509 Stainless Steel S32750 Rolls
  • Super Duplex S32750 Finish BA NO(8) Rolls

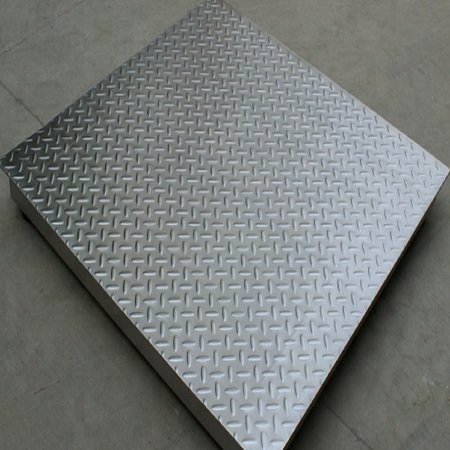

Super Duplex 2507 Chequered Plate
  • Super Duplex 2507 Chequered Plate
  • UNS S32750 Super Duplex Chequered Plate
  • WNR. 1.4410 Chequered Plate
  • ASME SA240 Super Duplex S32750 Chequered Plate
  • ASTM A240 Stainless Steel 2507 Chequered Plate
  • EN 10088 Super Duplex Steel S32750 Chequered Plate
  • SA-240 Super Duplex 2507 Cold Rolled Chequered Plate
  • FCAW SB 2509 Stainless Steel S32750 Chequered Plate
  • Super Duplex S32750 Finish BA NO(8) Chequered Plate
Super duplex 2507 shim sheet
  • Super Duplex 2507 Shim Sheet
  • UNS S32750 Super Duplex Shim Sheet
  • WNR. 1.4410 Shim Sheet
  • ASME SA240 Super Duplex S32750 Shim Sheet
  • ASTM A240 Stainless Steel 2507 Shim Sheet
  • EN 10088 Super Duplex Steel S32750 Shim Sheet
  • SA-240 Super Duplex 2507 Cold Rolled Shim Sheet
  • FCAW SB 2509 Stainless Steel S32750 Shim Sheet
  • Super Duplex S32750 Finish BA NO(8) Shim Sheet
Super duplex 2507 Perforated Sheet
  • Super Duplex 2507 Perforated Sheet
  • UNS S32750 Super Duplex Perforated Sheet
  • WNR. 1.4410 Perforated Sheet
  • ASME SA240 Super Duplex S32750 Perforated Sheet
  • ASTM A240 Stainless Steel 2507 Perforated Sheet
  • EN 10088 Super Duplex Steel S32750 Perforated Sheet
  • SA-240 Super Duplex 2507 Cold Rolled Perforated Sheet
  • FCAW SB 2509 Stainless Steel S32750 Perforated Sheet
  • Super Duplex S32750 Finish BA NO(8) Perforated Sheet

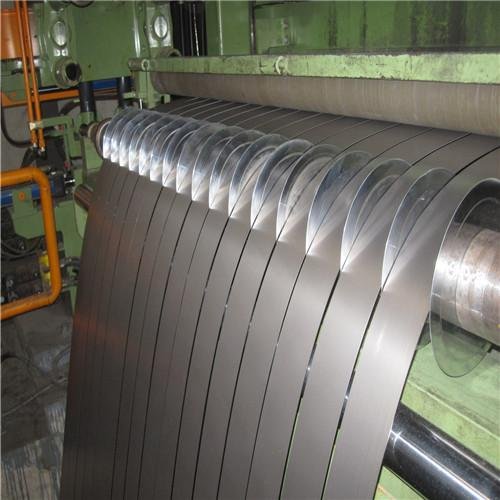

Super duplex 2507 Strip
  • Super Duplex 2507 Strip
  • UNS S32750 Super Duplex Strip
  • WNR. 1.4410 Strip
  • ASME SA240 Super Duplex S32750 Strip
  • ASTM A240 Stainless Steel 2507 Strip
  • EN 10088 Super Duplex Steel S32750 Strip
  • SA-240 Super Duplex 2507 Cold Rolled Strip
  • FCAW SB 2509 Stainless Steel S32750 Strip
  • Super Duplex S32750 Finish BA NO(8) Strip
Super duplex 2507 circle
  • Super Duplex 2507 Circle
  • UNS S32750 Super Duplex Circle
  • WNR. 1.4410 Circle
  • ASME SA240 Super Duplex S32750 Circle
  • ASTM A240 Stainless Steel 2507 Circle
  • EN 10088 Super Duplex Steel S32750 Circle
  • SA-240 Super Duplex 2507 Cold Rolled Circle
  • FCAW SB 2509 Stainless Steel S32750 Circle
  • Super Duplex S32750 Finish BA NO(8) Circle
Super duplex 2507 Rings
  • Super Duplex 2507 Ring
  • UNS S32750 Super Duplex Ring
  • WNR. 1.4410 Ring
  • ASME SA240 Super Duplex S32750 Ring
  • ASTM A240 Stainless Steel 2507 Ring
  • EN 10088 Super Duplex Steel S32750 Ring
  • SA-240 Super Duplex 2507 Cold Rolled Ring
  • FCAW SB 2509 Stainless Steel S32750 Ring
  • Super Duplex S32750 Finish BA NO(8) Ring
Super duplex 2507 flat
  • Super Duplex 2507 Flats
  • UNS S32750 Super Duplex Flats
  • WNR. 1.4410 Flats
  • ASME SA240 Super Duplex S32750 Flats
  • ASTM A240 Stainless Steel 2507 Flats
  • EN 10088 Super Duplex Steel S32750 Flats
  • SA-240 Super Duplex 2507 Cold Rolled Flats
  • FCAW SB 2509 Stainless Steel S32750 Flats
  • Super Duplex S32750 Finish BA NO(8) Flats


Dimensions of SUPER DUPLEX UNS S32750 SHEETS, PLATES & COILS :

duplex-steel-2507-sheet-dimensions
ASTM A240 Type 2507 Super Duplex Sheet Dimensions Imperial :
Surface finish of Plate (max in) Width (in)Gauge
2D – heat treated, Cold rolled, pickled plate 60 12–24
Temper rolled plate Mexinox only 48 13–29
2B – heat treated, Cold rolled, pickled, skin passed Plate 72* 10–24
(not brushed) Polished plate 60 11–24
BA Mexinox only 48 18–28

SA 240 GR 2507 Super Duplex Sheet Dimensions in Metric :
Surface finish of Plate (mm) Thickness (maximum mm) Width
2D to heat treated, Cold rolled, pickled plate 0.4 to 6.35 1524
2H to Work hardened plate 0.4 to 6.35 1524
2B to heat treated, Cold rolled, pickled, skin passed plate 0.25 to 8.0 2032
brushed, Polished plate 0.5 to 4.0 1524
2R to bright annealed, Cold rolled plate 0.25 to 3.5 1524
2E to heat treated, Cold rolled, mechanically descaled plate 0.4 to 8.0 2032


SIZE of SUPER DUPLEX UNS S32750 SHEETS, PLATES & COILS :


Imperial sizes of Super Duplex 2507 Plate :

SS Super Duplex Saf 2507 Plate Surface finish

Thickness (in)

Width (in)

BA Mexinox only 18–28 max. 48
1 – Hot rolled, heat treated, pickled Duplex 2507 Stainless Steel Plate & Sheet .1000 – .3750 max. 72
2R – Cold-rolled, bright-annealed Super Duplex 2507 Plate 0.002–0.06 0.118–25.551
2H – Work hardened Duplex Alloy 2507 Plate & Sheet 0.002–0.06 0.118–24.803
2B – Cold rolled, heat treated, pickled, skin passed Avesta 2507 Duplex Sheet & Plate 10–24 max. 72*
2D – Cold rolled, heat treated, pickled Super Duplex 2507 Plate 12–24 max. 60
Deco Rolled-On Mexinox only 14–28 max. 48
ASTM A240 Type 2507 Polished Plate & Sheet (not brushed) 11–24 max. 60
Temper rolled Mexinox only 13–29 max. 48


Metric sizes of Super Duplex 2507 Plate :

SA 240 GR 2507 Plate Surface finish

Thickness (mm)

Width (mm)

1D – Hot rolled, heat treated, pickled A240 Super Duplex Plate & Sheet 2.4–12.7 max. 2032
2B – Cold rolled, heat treated, pickled, skin passed Super Duplex 2507 Plate 0.25–8.0 max. 2032
2D – Cold rolled, heat treated, pickled Plate & Sheet 0.4–6.35 max. 1524
2R – Cold-rolled, bright-annealed Super Duplex ASTM A240 Sheet & Plate 0.05–1.50 3–649
2H – Work hardened SA 240 2507 Super Duplex Stainless Steel Plate & Sheet 0.05–1.50 3–630
2E – Cold rolled, heat treated, mechanically descaled ASTM A240 Type 2507 Super Duplex Sheet & Plate 0.4–8.0 max. 2032
2R – Cold rolled, bright annealed Duplex 2507 Plate & Sheet 0.25–3.5 max. 1524
2H – Work hardened ASTM A240 Type 2507 Duplex Sheet & Plate 0.4–6.35 max. 1524
Polished, brushed Super Duplex 2507 Plate 0.5–4.0 max. 1524
Deco 0.3–3.5 max. 1524
Coil 0.30–3.5
max. 1,524


AVAILABLE STOCK OF SUPER DUPLEX UNS S32750 SHEETS, PLATES & COILS:


Preview Products UNS DIN
Duplex Steel S32205 Sheet Super Duplex Steel Sheet
Super Duplex Steel S32750 Sheet
Super Duplex Steel 2507 Sheet
UNS S32750 Sheets 1.4410 Sheets
Duplex Steel S32205 Plates Super Duplex Steel Plate
Super Duplex Steel S32750 Plate
Super Duplex Steel 2507 Plate
UNS S32750 Plate 1.4410 Plates
Duplex Steel S32205 Coils Super Duplex Steel Coils
Super Duplex Steel S32750 Coils
Super Duplex Steel 2507 Coils
UNS S32750 Coil 1.4410 Coils
Duplex Steel S32205 Foils Super Duplex Steel Foils
Super Duplex Steel S32750 Foils
Super Duplex Steel 2507 Foils
UNS S32750 Foil 1.4410 Foils
Duplex Steel S32205 Strip Super Duplex Steel Strip
Super Duplex Steel S32750 Strip
Super Duplex Steel 2507 Strip
UNS S32750 Strips 1.4410 Strip


Equivalent Grades of SUPER DUPLEX UNS S32750 SHEETS, PLATES & COILS :


STANDARD WERKSTOFF NR. UNS
Super Duplex S32750 1.4410 S32750
Super Duplex 2507 1.4410 S32750


Chemical Composition of SUPER DUPLEX UNS S32750 SHEETS, PLATES & COILS :


UNS C % Cr % Ni % Mo % N % Mn % Cu % W S Si
S32750 < 0.03 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32 < 1.20 < 0.5 - - -
2507 < 0.03 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32 < 1.20 < 0.5 - - -


Mechanical Properties of SUPER DUPLEX UNS S32750 SHEETS, PLATES & COILS :


Grade YS (MPa) UTS (MPa) % Elongation Hardness(BHN)
UNS S32750 550 min. 795 min. 15 min. 310 max.
2507 550 min. 795 min. 15 min. 310 max.


SUPER DUPLEX UNS S32750 SHEETS, PLATES & COILS Price Per Kg (As per demand and manufacturer):


super-duplex-f53-sheet-plate
Super Duplex 2507 Plate Cost Super Duplex 2507 Plate Price in UAE Dirham Super Duplex 2507 Plate Price in US $
ASTM A240 Type 2507 Super Duplex Plate price per kg AED 31.46-35.95 Dirham USD 8.57-9.79
ASTM A240 Type 2507 Super Duplex Sheet price per kg AED 30.55-35.05 Dirham USD 8.32-9.54

SUPER DUPLEX STEEL S32750 SHEET / PLATE / Coil MECHANICAL PROPERTIES :

  • Super Duplex stainless steels exhibit PREN value higher than 40.
  • Combines most desirable characteristics of both super-ferritic and Super-Austenitic steel.
  • Has excellent resistance to chloride SCC, pitting, crevice and general corrosion and carbide related inter-granular corrosion.
  • Possesses high strength & impact strength.
  • Has high thermal conductivity and a lower coefficient of thermal expansion compared to Super Austenitic steels.

FABRICABILITY :

  • It should be hot worked in the range of 1250-1000 deg C, followed by a solution annealing at 1100 deg C and rapid quench.
  • It can be cold formed using methods similar to those commonly used for Stainless Steel. The primary difference is that the high yield strength makes it necessary to have higher forming forces, increased radius of bending, and increased allowance for spring back.
  • Deep drawing, stretch forming and similar processes are difficult to perform.

WELDABILITY :

  • It possesses good weldability and can be welded to itself and other materials by Shielded Metal Arc Welding (SMAW), GasTungsten Arc Welding (GTAW), Plasma Arc Welding (PAW) or Submerged Arc Welding (SAW).
  • Surfaces must be clean before welding.
  • Preheating is not necessary, except to prevent condensation on cold metal.
  • The recommended heat input should be nearly about 0.3-1.5K1/mm.
  • The interpass temperature should not exceed 150 deg C.
  • The root should be shielded with commercial Ar or 90%N2 / 10%H2 purging gas for maximum corrosion resistance.

CORROSION RESISTANCE :

  • It is highly resistant to carbide related inter-granular corrosion due to its low carbon content which lowers .
  • The risk of carbide precipitation at the grain boundaries during heat treatment. Its critical pitting temperature (CPT) is superior to that of 904L.
  • It has excellent resistance to crevice corrosion and SCC.
  • Extremely resistant to uniform corrosion by organic acids such as formic and acetic acid and also to inorganic acids, especially those containing chlorides.
  • Excellent corrosion resistance against highly corrosive acids like Sulphuric, Nitric, Phosphoric acids.

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Oil and gas industry.
  • Petrochemical industries ( polymerization reactor cycle pumps and pipework)
  • Offshore platforms (heat exchangers, process and service water systems, fire-fighting systems, and injection and ballast water systems)
  • Chemical process industries (heat exchangers and vessels)
  • Desalination plants (high pressure RO-plant and seawater piping)
  • Fertilizers (Recirculation tanks, sedimentation tanks, phosphate reactor recirculation pumps)
  • Power industry FGD systems
  • Utility & industrial scrubber systems (absorber towers, ducting, piping)
  • Mining/ Extraction ( hot slurry pipe work, acid leach mining)
  • Sewage (critically important pipelines.)
  • Engineering applications (pressure vessels)



DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Super Duplex UNS S32750 Sheets, Plates & Coils | WNR. 1.4410 Sheets, Plates & Coils​ to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Super Duplex UNS S32750 Sheets, Plates & Coils | WNR. 1.4410 Sheets, Plates & Coils to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
