ALLOY STEEL F21/ F22/ F91 BUTTWELD-FITTING

Buttweld-Fitting
Duplex Steel


Products

Download brochure

Here is some useful documents


Table of Contents :

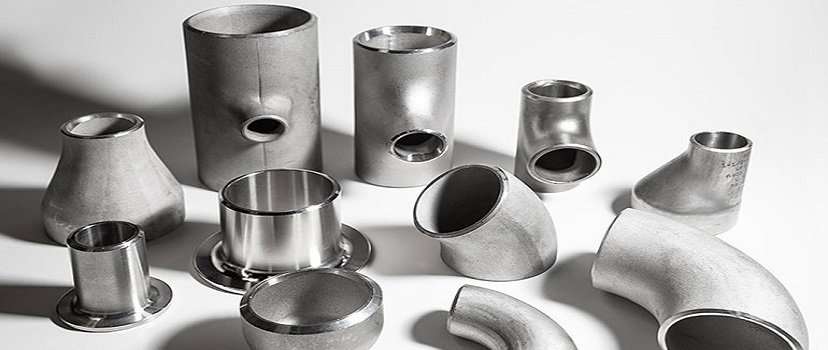

ALLOY STEEL F21/ F22/ F91 BUTTWELD-FITTING

We are manufacturer of Alloy Steel WP 5 Butt weld Pipe Fittings that are made available in varied sizes. We are affianced in providing a wide gamut of Alloy Steel F21 Butt weld Pipe Fittings to the clients. DUPLEX STEEL & ENGINEERING one of the leading manufacturer, exporter and supplier of Alloy Steel ASTM A234 WP5 Butt weld Pipe Fittings in India.

Alloy Steel F21 Seamless Fitting and Alloy WP5 Welded Fitting grades of Alloy WP5 fitting exhibit good machinability and have excellent weld-ability characteristics with or without the addition of filler metals. These Alloy Steel F21 Butt weld Fitting are available in different form 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Bends 1.5d, 3d, 5d, 10d, 180 Deg Bend, U bend, Concentric Reducer, Eccentric Reducer, Cross, Short Stub End, Long stub end, End Cap, Dish Cap, Equal Tee, Unequal Tee, Lateral Tee, etc.

SPECIFICATIONS of Alloy Steel F21 Buttweld Fitting :


Grade Alloy Steel F21
Standard ASTM A234, ASME SA234
Dimensions ASME B16.28, ASME/ANSI B16.9, MSS-SP-43
Alloy Steel F21 Fittings 1/8" NB - 48" NB
Form 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap
Schedule SCH 5 To SCH XXS
Thickness 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness.
Type Seamless / Welded / Fabricated

TYPE of Alloy Steel F21 BUTTWELD-FITTING :

Concentric Reducer
  • Alloy Steel F21 Butt weld Concentric Reducer
  • UNS K41545 Butt weld Concentric Reducer
  • Werkstoff Nr. 1.7380 Butt weld Concentric Reducer
  • DIN 10CRM0910 Butt weld Concentric Reducer
  • ASTM A182 Alloy Steel F21 Butt weld Concentric Reducer
  • ANSI B16.11Alloy Steel F22 Butt weld Concentric Reducer
  • ASME SA182 Alloy Steel F91 Butt weld Concentric Reducer
Elbow 45 Deg.
  • Alloy Steel F21 Butt weld Elbow 45 Deg
  • UNS K41545 Butt weld Elbow 45 Deg
  • Werkstoff Nr. 1.7380 Butt weld Elbow 45 Deg
  • DIN 10CRM0910 Butt weld Elbow 45 Deg
  • ASTM A182 Alloy Steel F21 Butt weld Elbow 45 Deg
  • ANSI B16.11Alloy Steel F22 Butt weld Elbow 45 Deg
  • ASME SA182 Alloy Steel F91 Butt weld Elbow 45 Deg
Elbow 90 Deg.
  • Alloy Steel F21 Butt weld Elbow 90 Deg
  • UNS K41545 Butt weld Elbow 90 Deg
  • Werkstoff Nr. 1.7380 Butt weld Elbow 90 Deg
  • DIN 10CRM0910 Butt weld Elbow 90 Deg
  • ASTM A182 Alloy Steel F21 Butt weld Elbow 90 Deg
  • ANSI B16.11Alloy Steel F22 Butt weld Elbow 90 Deg
  • ASME SA182 Alloy Steel F91 Butt weld Elbow 90 Deg
Elbow 180 Deg.
  • Alloy Steel F21 Butt weld Elbow 180 Deg
  • UNS K41545 Butt weld Elbow 180 Deg
  • Werkstoff Nr. 1.7380 Butt weld Elbow 180 Deg
  • DIN 10CRM0910 Butt weld Elbow 180 Deg
  • ASTM A182 Alloy Steel F21 Butt weld Elbow 180 Deg
  • ANSI B16.11Alloy Steel F22 Butt weld Elbow 180 Deg
  • ASME SA182 Alloy Steel F91 Butt weld Elbow 180 Deg
End Cap
  • Alloy Steel F21 Butt weld End Cap
  • UNS K41545 Butt weld End Cap
  • Werkstoff Nr. 1.7380 Butt weld End Cap
  • DIN 10CRM0910 Butt weld End Cap
  • ASTM A182 Alloy Steel F21 Butt weld End Cap
  • ANSI B16.11Alloy Steel F22 Butt weld End Cap
  • ASME SA182 Alloy Steel F91 Butt weld End Cap
Equal Tee
  • Alloy Steel F21 Butt weld Equal Teee
  • UNS K41545 Butt weld Equal Tee
  • Werkstoff Nr. 1.7380 Butt weld Equal Tee
  • DIN 10CRM0910 Butt weld Equal Tee
  • ASTM A182 Alloy Steel F21 Butt weld Equal Tee
  • ANSI B16.11Alloy Steel F22 Butt weld Equal Tee
  • ASME SA182 Alloy Steel F91 Butt weld Equal Tee
Elbow Nipple Fittings
  • Alloy Steel F21 Butt weld Elbow Nipple Fittings
  • UNS K41545 Butt weld Elbow Nipple Fittings
  • Werkstoff Nr. 1.7380 Butt weld Elbow Nipple Fittings
  • DIN 10CRM0910 Butt weld Elbow Nipple Fittings
  • ASTM A182 Alloy Steel F21 Butt weld Elbow Nipple Fittings
  • ANSI B16.11Alloy Steel F22 Butt weld Elbow Nipple Fittings
  • ASME SA182 Alloy Steel F91 Butt weld Elbow Nipple Fittings
Stub End Fitting
  • Alloy Steel F21 Butt weld Stub End Fitting
  • UNS K41545 Butt weld Stub End Fitting
  • Werkstoff Nr. 1.7380 Butt weld Stub End Fitting
  • DIN 10CRM0910 Butt weld Stub End Fitting
  • ASTM A182 Alloy Steel F21 Butt weld Stub End Fitting
  • ANSI B16.11Alloy Steel F22 Butt weld Stub End Fitting
  • ASME SA182 Alloy Steel F91 Butt weld Stub End Fitting
Eccentric Reducer
  • Alloy Steel F21 Butt weld Eccentric Reducer
  • UNS K41545 Butt weld Eccentric Reducer
  • Werkstoff Nr. 1.7380 Butt weld Eccentric Reducer
  • DIN 10CRM0910 Butt weld Eccentric Reducer
  • ASTM A182 Alloy Steel F21 Butt weld Eccentric Reducer
  • ANSI B16.11Alloy Steel F22 Butt weld Eccentric Reducer
  • ASME SA182 Alloy Steel F91 Butt weld Eccentric Reducer


Dimensions of Alloy Steel F21 BUTTWELD FITTING :

Alloy Steel F21-dimensions
Nominal
PipeSize		 Outside
Diameter		 90° Elbows 45° Elbows 180° Returns
(inches) - Long Radius Short Radius Long Radius Long Radius
  (mm) (inches) Center to Face
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Radius
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1/2 21.3 0.840 1 1/2 – 5/8   2 1 7/8
3/4 26.7 1.050 1 1/8   7/16   2 1/4 1 11/16
1 33.4 1.315 1 1/2 1 7/8   3 2 3/16
1 1/4 42.2 1.660 1 7/8 1 1/4 1   3 3/4 2 3/4
1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4
4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
8 219.1 8.625 12 8 5 12 24 16 5/16
10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
12 323.9 12.750 18 12 7 1/2 18 36 24 3/8


SIZE of Alloy Steel F21 BUTTWELD FITTING :


NPS
(inch)		 Pipe Sch. Wall
Thk.
(in)		 OD
(inch)		 Temperature
100 200 300 400 500
Allowable Stress (Pressure Rating)
16700 16700 16700 15500 14400
1" 40 0.133 1.315 2205 2205 2205 2047 1902
80 0.179 1.315 3061 3061 3061 2841 2640
160 0.250 1.315 4493 4493 4493 4170 3874
1 1/2" 40 0.145 1.900 1629 1629 1629 1512 1404
80 0.200 1.900 2303 2303 2303 2138 1986
160 0.281 1.900 3362 3362 3362 3120 2899
2" 40 0.154 2.375 1371 1371 1371 1272 1182
80 0.218 2.375 1985 1985 1985 1843 1712
160 0.344 2.375 3283 3283 3283 3047 2831
3" 40 0.216 3.500 1301 1301 1301 1208 1122
80 0.300 3.500 1844 1844 1844 1712 1590
160 0.438 3.500 2787 2787 2787 2587 2403
4" 40 0.237 4.500 1102 1102 1102 1023 950
80 0.337 4.500 1596 1596 1596 1482 1377
160 0.531 4.500 2611 2611 2611 2424 2552
5" 40 0.258 5.563 965 965 965 896 832
80 0.375 5.563 1428 1428 1428 1325 1231
160 0.625 5.563 2474 2474 2474 2296 2133
6" 40 0.280 6.625 877 877 877 814 756
80 0.432 6.625 1379 1379 1379 1280 1189
160 0.719 6.625 2382 2382 2382 2211 2054
8" 40 0.322 8.625 771 771 771 716 665
80 0.500 8.625 1218 1218 1218 1131 1050
160 0.906 8.625 2298 2298 2298 2133 1982
10" 40 0.365 10.750 699 699 699 649 603
80 0.594 10.750 1159 1159 1159 1075 999
160 1.125 10.750 2289 2289 2289 2124 1974


AVAILABLE STOCK OF Alloy Steel F21 BUTTWELD FITTING:


Preview Products UNS DIN
Alloy Steel F21 Elbow Alloy Steel F21 Elbow UNS K41545 Elbow 1.7380 Elbow
Alloy Steel F21 Tee Alloy Steel F21 Tee UNS K41545 Tee 1.7380 Tee
Alloy Steel F21 Cross Alloy Steel F21 Cross UNS K41545 Cross 1.7380 Cross
Alloy Steel F21 Reducer Alloy Steel F21 Reducer UNS K41545 Reducer 1.7380 Reducer
Alloy Steel F21 Stub End Alloy Steel F21 Stub End UNS K41545 Stub End 1.7380 Stub End


Equivalent Grades of Alloy Steel F21 Buttweld Fitting :


STANDARD UNS WERKSTOFF NR. DIN
Alloy Steel F21 K41545 1.7380 10CRM0910


Chemical Composition of Alloy Steel F21 Buttweld Fitting:


Grade C Mn Si P S Cr Mo
Alloy Steel F21  0.15 max  0.3-0.6 0.5  0.03 0.03 4-6 0.44-0.65


Mechanical Properties of Alloy Steel F21 Buttweld Fitting :


Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation %
A182 F21 275 485 20


Alloy Steel F21 Price Per Kg (As per demand and manufacturer):


Alloy Steel Buttweld Fittings Price in USD
ASTM A182 F22 Elbow US $2-1400 / Piece
Prime A182 F91 Alloy Steel US $1-8800 / Piece
ASTM A182 F91 Short Radius Elbow US $1-8800 / Piece
astm a182 F91 alloy steel 1D Elbow US $1-8800 / Piece
F22 Alloy Structural Steel 5D Elbow US $1-8800 / Piece
Prime Quality a182 F91 alloy steel Tee US $1-8800 / Piece
F91 alloy steel Concentric Reducer US $1-8800 / Piece


author
Alloy Steel F21 Buttweld Fittings

Request the latest Alloy Steel F21 Buttweld Fittings Price List. Please Call +91 98691 88888 or Send an Email to sales@duplexsteel.org for Alloy Steel F21, 1.7380 Buttweld Fittings Ready stock information and updated price list.

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Chemical tanks
  • Pulp & Paper Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Desalination
  • Architecture and Construction
  • Food Processing Equipment
  • Biofuels plant
  • Cargo tanks for ships and trucks
  • Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
  • Digester in sulphate and sulfite plants, blow tanks, blow lines

DUPLEX STEEL & ENGINEERING manufactures and exports ​Alloy Steel F21 Pipe Fitting​ to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

DUPLEX STEEL & ENGINEERING manufactures and exports ​Alloy Steel F21 Pipe Fitting to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
