INCOLOY 825 PLATES / SHEETS

Plates / Sheets
Duplex Steel


Products

Download brochure

Here is some useful documents


Table of Contents :

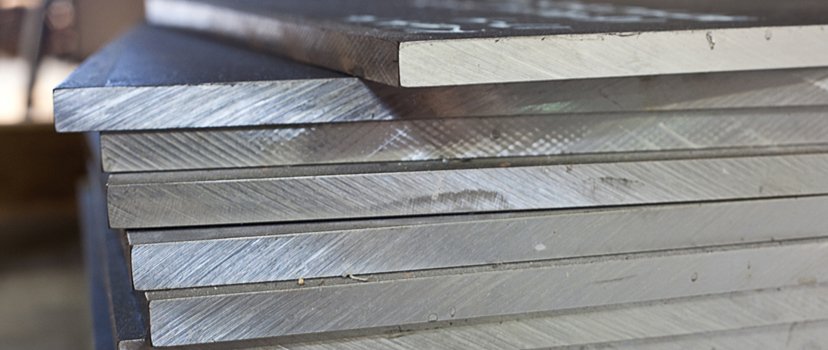

Incoloy 825 -sheet-plate

Incoloy ASTM B424 UNS N08825 sheets, Incoloy UNS N08825 Sheets, Alloy 825 Cold Rolled Plates in THAILAND, Incoloy UNS N08825 Hot Rolled Plates in Stockholder in India.

We are known for our outstanding high quality Incoloy 825 Coils which are used in a host of applications such as structural, food processing, mechanical and engineering applications, dairy, petrochemical & fertilizers industries, chemical, etc.

Our Incoloy 825 Plates is also being considered in advanced reactor concepts because of its high allowable design strength at elevated temperatures, especially between the ranges of 1200 Degree F – 1400 Degree F (649 Degree C – 760 Degree C). We are manufacturers, exporters and suppliers of Incoloy 825 Sheets, Plates & Coils, around the world, which are designed to resist heavy weights and pressure conditionsand are available as per the custom drawing provided by the clients.

SPECIFICATIONS of Incoloy 825 Plates / Sheets / Coil :


Grade Incoloy 825 | UNS N08825
Standard ASTM B424 / ASME SB424
Size 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness 0.1mm To 100 mm
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form Sheets, Plates, Coils, Slatting Coils, Perforated Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Applications Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry

Incoloy 825 Sheets in USA, Incoloy UNS N08825 seamless Slitting Coil supplier in Mumbai.


TYPE of Incoloy 825 PLATES / SHEETS / COILS:

Incoloy 825 Sheets
  • INCOLOY 825 Sheets
  • UNS N08825 Sheets
  • Werkstoff Nr. 2.4858 Sheets
  • JIS NCF 825 Sheets
  • ASTM B424 Inconel 825 Sheets
  • ISO Certified Alloy Incoloy 825 Sheets
  • ASME SB424 Alloy 825 Sheets
Incoloy 825 plates
  • INCOLOY 825 Plates
  • UNS N08825 Plates
  • Werkstoff Nr. 2.4858 Plates
  • JIS NCF 825 Plates
  • ASTM B424 Inconel 825 Plates
  • ISO Certified Alloy Incoloy 825 Plates
  • ASME SB424 Alloy 825 Plates
Incoloy 825 Coil
  • INCOLOY 825 Coils
  • UNS N08825 Coils
  • Werkstoff Nr. 2.4858 Coils
  • JIS NCF 825 Coils
  • ASTM B424 Inconel 825 Coils
  • ISO Certified Alloy Incoloy 825 Coils
  • ASME SB424 Alloy 825 Coils
Incoloy 825 Foils
  • INCOLOY 825 Foils
  • UNS N08825 Foils
  • Werkstoff Nr. 2.4858 Foils
  • JIS NCF 825 Foils
  • ASTM B424 Inconel 825 Foils
  • ISO Certified Alloy Incoloy 825 Foils
  • ASME SB424 Alloy 825 Foils
Incoloy 825 Rolls
  • INCOLOY 825 Rolls
  • UNS N08825 Rolls
  • Werkstoff Nr. 2.4858 Rolls
  • JIS NCF 825 Rolls
  • ASTM B424 Inconel 825 Rolls
  • ISO Certified Alloy Incoloy 825 Rolls
  • ASME SB424 Alloy 825 Rolls
Incoloy 825 Chequered Plate
  • INCOLOY 825 Chequered Plate
  • UNS N08825 Chequered Plate
  • Werkstoff Nr. 2.4858 Chequered Plate
  • JIS NCF 825 Chequered Plate
  • ASTM B424 Inconel 825 Chequered Plate
  • ISO Certified Alloy Incoloy 825 Chequered Plate
  • ASME SB424 Alloy 825 Chequered Plate
Incoloy 825 shim sheet
  • INCOLOY 825 Shim Sheet
  • UNS N08825 Shim Sheet
  • Werkstoff Nr. 2.4858 Shim Sheet
  • JIS NCF 825 Shim Sheet
  • ASTM B424 Inconel 825 Shim Sheet
  • ISO Certified Alloy Incoloy 825 Shim Sheet
  • ASME SB424 Alloy 825 Shim Sheet
Incoloy 825 Perforated Sheet
  • INCOLOY 825 Perforated Sheet
  • UNS N08825 Perforated Sheet
  • Werkstoff Nr. 2.4858 Perforated Sheet
  • JIS NCF 825 Perforated Sheet
  • ASTM B424 Inconel 825 Perforated Sheet
  • ISO Certified Alloy Incoloy 825 Perforated Sheet
  • ASME SB424 Alloy 825 Perforated Sheet
Incoloy 825 Strip
  • INCOLOY 825 Strip
  • UNS N08825 Strip
  • Werkstoff Nr. 2.4858 Strip
  • JIS NCF 825 Strip
  • ASTM B424 Inconel 825 Strip
  • ISO Certified Alloy Incoloy 825 Strip
  • ASME SB424 Alloy 825 Strip
Incoloy 825 circle
  • INCOLOY 825 Circle
  • UNS N08825 Circle
  • Werkstoff Nr. 2.4858 Circle
  • JIS NCF 825 Circle
  • ASTM B424 Inconel 825 Circle
  • ISO Certified Alloy Incoloy 825 Circle
  • ASME SB424 Alloy 825 Circle
Incoloy 825 Rings
  • INCOLOY 825 Ring
  • UNS N08825 Ring
  • Werkstoff Nr. 2.4858 Ring
  • JIS NCF 825 Ring
  • ASTM B424 Inconel 825 Ring
  • ISO Certified Alloy Incoloy 825 Ring
  • ASME SB424 Alloy 825 Ring
Incoloy 825 Flat
  • INCOLOY 825 Flats
  • UNS N08825 Flats
  • Werkstoff Nr. 2.4858 Flats
  • JIS NCF 825 Flats
  • ASTM B424 Inconel 825 Flats
  • ISO Certified Alloy Incoloy 825 Flats
  • ASME SB424 Alloy 825 Flats


Dimensions of Incoloy 825 PLATES / SHEETS / COILS :

Incoloy 825 -sheet-dimensions
Material Size Thickness
PLATES / SHEETS / COILS 1000 mm x 2000 mm0.1mm To 100 mm Thickness
1220 mm x 2440 mm (4' x 8')
1250 mm x 2500 mm
1500 mm x 3000 mm
2000 mm x 4000 mm
2000 mm x 2000 mm

Circle cutting in Incoloy 825 perforated sheets up to 1000mm diameter. :
Hole Dia (in mm) Hole Centres
(in mm)		 O/A Finish Thk Full Sheet Size
(in mm)
0.75 1.5 23% 2B 0.6 2000 x 1000
1 2 23% 2B 1.0 2000 x 1000
1.5 2.6 30% 2B 1.0 2000 x 1000
2 3.5 30% 2B 1.0 2000 x 1000
2 3.5 30% 2B 1.0 2000 x 1000
3 5 33% 2B 1.0 2000 x 1000
4 5.6 46% 2B 1.0 2000 x 1000
5 8 35% 2B 1.0 2000 x 1000
6 8 51% 2B 1.0 2000 x 1000
8 10 58% 2B 1,0 2000 x 1000

PLAIN AND POLISHED Incoloy 825 Sheet
PRODUCT FINISH THICKNESS MM MAX SHEET SIZE MM
Incoloy 825 Plain 2B 0.9 2000 x 1000
Bright 0.9 2000 x 1000
Brushed Finish 0.9, 1.2 2000 x 1000, 2500 x 1250
Rimex Super Mirror 0.8, 1.2 2400 x 1200, 2500 x 1250
Embossed 0.8, 1.0 2500 x 1250


SIZE of Incoloy 825 PLATES / SHEETS / COILS:


Type of Incoloy 825 Plate Imperial size
Surface finish Thickness (in) Width (in)
1 – Incoloy 825 Hot rolled, heat treated, pickled Plate & Sheet .1000 – .3750 max. 72
2R – Incoloy 825 Cold-rolled, bright-annealed Sheet & Plate 0.002–0.06 0.118–25.551
2H – Incoloy 825 Work hardened Plate & Sheet 0.002–0.06 0.118–24.803
2B – Incoloy 825 Cold rolled, heat treated, pickled, skin passed Sheet & Plate 10–24 max. 72*
2D – Incoloy 825 Cold rolled, heat treated, pickled Plate & Sheet 12–24 max. 60
BA Mexinox only 18–28 max. 48
Deco Rolled-On Mexinox only 14–28 max. 48
Incoloy 825 Polished Plate & Sheet (not brushed) 11–24 max. 60
Temper rolled Mexinox only 13–29 max. 48


Size of Incoloy 825 Plate Metric :
Surface finish Thickness (mm) Width (mm)
Incoloy 825 1D – Hot rolled, heat treated, pickled Plate & Sheet 2.4–12.7 max. 2032
2R – Incoloy 825 Cold-rolled, bright-annealed Sheet & Plate 0.05–1.50 3–649
2H – Incoloy 825 Work hardened Plate & Sheet 0.05–1.50 3–630
2B – Incoloy 825 Cold rolled, heat treated, pickled, skin passed Sheet & Plate 0.25–8.0 max. 2032
2D – Incoloy 825 Cold rolled, heat treated, pickled Plate & Sheet 0.4–6.35 max. 1524
2E – Incoloy 825 Cold rolled, heat treated, mechanically descaled Sheet & Plate 0.4–8.0 max. 2032
2R – Incoloy 825 Cold rolled, bright annealed Plate & Sheet 0.25–3.5 max. 1524
2H – Incoloy 825 Work hardened Sheet & Plate 0.4–6.35 max. 1524
Incoloy 825 Polished, brushed Plate & Sheet 0.5–4.0 max. 1524
Deco 0.3–3.5 max. 1524
Incoloy 825 Coil 0.30–3.5 max. 1,524


AVAILABLE STOCK OF Incoloy 825 Plates / Sheets / Coil:


Preview Products UNS DIN
Duplex Steel S32205 Sheet Incoloy 825 Sheet N08825 Sheets 2.4858 Sheets
Duplex Steel S32205 Plates Incoloy 825 Plate N08825 Plates 2.4858 Plates
Duplex Steel S32205 Coils Incoloy 825 Coils N08825 Coil 2.4858 Coils
Duplex Steel S32205 Foils Incoloy 825 Foils N08825 Foil 2.4858 Foils
Duplex Steel S32205 Strip Incoloy 825 Strip N08825 Strips 2.4858 Strip


Equivalent Grades of Incoloy 825 Plates / Sheets / Coil :


STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo XH38BT


Chemical Composition of Incoloy 825 Plates / Sheets / Coil :


Grade C Mn Si S Cu Fe Ni Cr Al Ti
825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20


Mechanical Properties of Incoloy 825 Plates / Sheets / Coil :


Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %


Incoloy 825 Plates / Sheets / Coil Price Per Kg (As per demand and manufacturer):


Price Rang by country  Sheet Price
(per kg)		 Plate Price
(per kg)		 Coil Price
(per kg)
Incoloy 825 Stainless Steel Price in India (₹) 280 - 300  300 - 350  260 - 280
Incoloy 825 Price in Malaysia (RM) 15.51 - 16.62 16.62 - 19.39 14.41 - 15.51
Incoloy 825 Price in Singapore (S$) 5.02 - 5.38 5.38 - 6.28 4.66 - 5.02
Incoloy 825 Price in UAE (Dirham) 13.51 - 14.47 14.47 - 16.88 12.54 - 13.51
Incoloy 825 Stainless Steel Price in UK ( £) 2.77 - 2.97  2.97 - 3.46 2.57 - 2.77
Incoloy 825 Stainless Steel Price in Europe (€) 3.25 - 3.49 3.49 - 4.07 3.02 - 3.25
Incoloy 825 Price in USA ($) 3.68 - 3.94 3.94 - 4.60 3.42 - 3.68


author
Incoloy 825 Plates / Sheets / Coil

Request the latest Incoloy 825 Plates / Sheets / Coil Price List. Please Call +91 98691 88888 or Send an Email to sales@duplexsteel.org for Incoloy 825 , 2.4858 Pipe Plates / Sheets / Coil Ready stock information and updated price list.

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Chemical tanks
  • Pulp & Paper Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Desalination
  • Architecture and Construction
  • Food Processing Equipment
  • Biofuels plant
  • Cargo tanks for ships and trucks
  • Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
  • Digester in sulphate and sulfite plants, blow tanks, blow lines

DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Incoloy 825 Sheets, Plates & Coils | UNS N08825 Sheets, Plates & Coils​ to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Incoloy 825 Sheets, Plates & Coils | UNS N08825 Sheets, Plates & Coils to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo
