Nickel Alloy 200 PLATES / SHEETS

Plates / Sheets
Duplex Steel


Products

Download brochure

Here is some useful documents


Table of Contents :

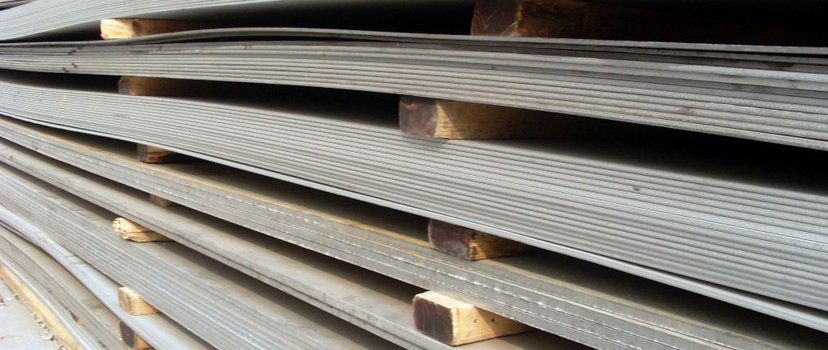

Nickel Alloy 200-sheet-plate

Nickel Alloy ASTM B168 UNS N02200 sheets, Nickel Alloy UNS N02200 Sheets, Alloy 200 Cold Rolled Plates in Stockholder in India.

Victor Steels are one of the leading manufacturers exporters and suppliers of Nickel Alloy 200 Sheets, Plates & Coils, around the world, which are designed to resist heavy weights and pressure conditionsand are available as per the custom drawing provided by the clients.

We also supply and export superior quality Nickel Alloy 200 Perforated Coils which is an excellent choice for its tensile strength, high resistance to corrosion, and high fabrication ability and its commenly used in screens, filters, diffusers, strainers, washer/dryer drums, and medical equipment. Nickel Alloy Grade 200 is a commonly used chromium and nickel austenitic steel alloy, which is non-magnetic in nature. These Nickel Alloy 200 Slatting Coils | UNS N02200 is also being considered in advanced reactor concepts because of its high allowable design strength at elevated temperatures, especially between the ranges of 1200 Degree F – 1400 Degree F (649 Degree C – 760 Degree C).

SPECIFICATIONS of Nickel Alloy 200 Plates / Sheets / Coil :


Grade Nickel Alloy 200 | UNS N02200
Standard ASTM B168 / ASME SB168
Thickness 0.1mm To 100 mm
Size 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form Sheets, Plates, Coils, Slatting Coils, Perforated Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Applications Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry

Nickel Alloy DIN 2.4066 Hot Rolled Plates in Australia, Nickel Alloy 200 Sheets in USA, Nickel Alloy UNS N02200 seamless Slitting Coil supplier in Mumbai.


TYPE of Nickel Alloy 200 PLATES / SHEETS / COILS:

Nickel Alloy 200 Sheets
  • Nickel 200 Sheets
  • UNS N02200 Sheets
  • Werkstoff Nr. 2.4066 Sheets
  • JIS NW 2200 Sheets
  • ASTM B1682Nickel 200 Sheets
  • ISO Certified Alloy Nickel 200 Sheets
  • ASME SB162 Nickel® Alloy 200 Sheets
Nickel Alloy 200 plates
  • Nickel 200 Plates
  • UNS N02200 Plates
  • Werkstoff Nr. 2.4066 Plates
  • JIS NW 2200 Plates
  • ASTM B1682Nickel 200 Plates
  • ISO Certified Alloy Nickel 200 Plates
  • ASME SB162 Nickel® Alloy 200 Plates
Nickel Alloy 200 Coil
  • Nickel 200 Coils
  • UNS N02200 Coils
  • Werkstoff Nr. 2.4066 Coils
  • JIS NW 2200 Coils
  • ASTM B1682Nickel 200 Coils
  • ISO Certified Alloy Nickel 200 Coils
  • ASME SB162 Nickel® Alloy 200 Coils
Nickel Alloy 200 Foils
  • Nickel 200 Foils
  • UNS N02200 Foils
  • Werkstoff Nr. 2.4066 Foils
  • JIS NW 2200 Foils
  • ASTM B1682Nickel 200 Foils
  • ISO Certified Alloy Nickel 200 Foils
  • ASME SB162 Nickel® Alloy 200 Foils
Nickel Alloy 200 Rolls
  • Nickel 200 Rolls
  • UNS N02200 Rolls
  • Werkstoff Nr. 2.4066 Rolls
  • JIS NW 2200 Rolls
  • ASTM B1682Nickel 200 Rolls
  • ISO Certified Alloy Nickel 200 Rolls
  • ASME SB162 Nickel® Alloy 200 Rolls
Nickel Alloy 200 Chequered Plate
  • Nickel 200 Chequered Plate
  • UNS N02200 Chequered Plate
  • Werkstoff Nr. 2.4066 Chequered Plate
  • JIS NW 2200 Chequered Plate
  • ASTM B1682Nickel 200 Chequered Plate
  • ISO Certified Alloy Nickel 200 Chequered Plate
  • ASME SB162 Nickel® Alloy 200 Chequered Plate
Nickel Alloy 200 shim sheet
  • Nickel 200 Shim Sheet
  • UNS N02200 Shim Sheet
  • Werkstoff Nr. 2.4066 Shim Sheet
  • JIS NW 2200 Shim Sheet
  • ASTM B1682Nickel 200 Shim Sheet
  • ISO Certified Alloy Nickel 200 Shim Sheet
  • ASME SB162 Nickel® Alloy 200 Shim Sheet
Nickel Alloy 200 Perforated Sheet
  • Nickel 200 Perforated Sheet
  • UNS N02200 Perforated Sheet
  • Werkstoff Nr. 2.4066 Perforated Sheet
  • JIS NW 2200 Perforated Sheet
  • ASTM B1682Nickel 200 Perforated Sheet
  • ISO Certified Alloy Nickel 200 Perforated Sheet
  • ASME SB162 Nickel® Alloy 200 Perforated Sheet
Nickel Alloy 200 Strip
  • Nickel 200 Strip
  • UNS N02200 Strip
  • Werkstoff Nr. 2.4066 Strip
  • JIS NW 2200 Strip
  • ASTM B1682Nickel 200 Strip
  • ISO Certified Alloy Nickel 200 Strip
  • ASME SB162 Nickel® Alloy 200 Strip
Nickel Alloy 200 circle
  • Nickel 200 Circle
  • UNS N02200 Circle
  • Werkstoff Nr. 2.4066 Circle
  • JIS NW 2200 Circle
  • ASTM B1682Nickel 200 Circle
  • ISO Certified Alloy Nickel 200 Circle
  • ASME SB162 Nickel® Alloy 200 Circle
Nickel Alloy 200 Rings
  • Nickel 200 Ring
  • UNS N02200 Ring
  • Werkstoff Nr. 2.4066 Ring
  • JIS NW 2200 Ring
  • ASTM B1682Nickel 200 Ring
  • ISO Certified Alloy Nickel 200 Ring
  • ASME SB162 Nickel® Alloy 200 Ring
Nickel Alloy 200 Flat
  • Nickel 200 Flats
  • UNS N02200 Flats
  • Werkstoff Nr. 2.4066 Flats
  • JIS NW 2200 Flats
  • ASTM B1682Nickel 200 Flats
  • ISO Certified Alloy Nickel 200 Flats
  • ASME SB162 Nickel® Alloy 200 Flats


Dimensions of Nickel Alloy 200 PLATES / SHEETS / COILS :

Nickel Alloy 200-sheet-dimensions
Material Size Thickness
PLATES / SHEETS / COILS 1000 mm x 2000 mm0.1mm To 100 mm Thickness
1220 mm x 2440 mm (4' x 8')
1250 mm x 2500 mm
1500 mm x 3000 mm
2000 mm x 4000 mm
2000 mm x 2000 mm

Circle cutting in Nickel Alloy 200 perforated sheets up to 1000mm diameter. :
Hole Dia (in mm) Hole Centres
(in mm)		 O/A Finish Thk Full Sheet Size
(in mm)
0.75 1.5 23% 2B 0.6 2000 x 1000
1 2 23% 2B 1.0 2000 x 1000
1.5 2.6 30% 2B 1.0 2000 x 1000
2 3.5 30% 2B 1.0 2000 x 1000
2 3.5 30% 2B 1.0 2000 x 1000
3 5 33% 2B 1.0 2000 x 1000
4 5.6 46% 2B 1.0 2000 x 1000
5 8 35% 2B 1.0 2000 x 1000
6 8 51% 2B 1.0 2000 x 1000
8 10 58% 2B 1,0 2000 x 1000

PLAIN AND POLISHED Nickel Alloy 200 Sheet
PRODUCT FINISH THICKNESS MM MAX SHEET SIZE MM
Nickel Alloy 200 Plain 2B 0.9 2000 x 1000
Bright 0.9 2000 x 1000
Brushed Finish 0.9, 1.2 2000 x 1000, 2500 x 1250
Rimex Super Mirror 0.8, 1.2 2400 x 1200, 2500 x 1250
Embossed 0.8, 1.0 2500 x 1250


SIZE of Nickel Alloy 200 PLATES / SHEETS / COILS:


Type of Nickel Alloy 200 Plate Imperial size
Surface finish Thickness (in) Width (in)
1 – Nickel Alloy 200 Hot rolled, heat treated, pickled Plate & Sheet .1000 – .3750 max. 72
2R – Nickel Alloy 200 Cold-rolled, bright-annealed Sheet & Plate 0.002–0.06 0.118–25.551
2H – Nickel Alloy 200 Work hardened Plate & Sheet 0.002–0.06 0.118–24.803
2B – Nickel Alloy 200 Cold rolled, heat treated, pickled, skin passed Sheet & Plate 10–24 max. 72*
2D – Nickel Alloy 200 Cold rolled, heat treated, pickled Plate & Sheet 12–24 max. 60
BA Mexinox only 18–28 max. 48
Deco Rolled-On Mexinox only 14–28 max. 48
Nickel Alloy 200 Polished Plate & Sheet (not brushed) 11–24 max. 60
Temper rolled Mexinox only 13–29 max. 48


Size of Nickel Alloy 200 Plate Metric :
Surface finish Thickness (mm) Width (mm)
Nickel Alloy 200 1D – Hot rolled, heat treated, pickled Plate & Sheet 2.4–12.7 max. 2032
2R – Nickel Alloy 200 Cold-rolled, bright-annealed Sheet & Plate 0.05–1.50 3–649
2H – Nickel Alloy 200 Work hardened Plate & Sheet 0.05–1.50 3–630
2B – Nickel Alloy 200 Cold rolled, heat treated, pickled, skin passed Sheet & Plate 0.25–8.0 max. 2032
2D – Nickel Alloy 200 Cold rolled, heat treated, pickled Plate & Sheet 0.4–6.35 max. 1524
2E – Nickel Alloy 200 Cold rolled, heat treated, mechanically descaled Sheet & Plate 0.4–8.0 max. 2032
2R – Nickel Alloy 200 Cold rolled, bright annealed Plate & Sheet 0.25–3.5 max. 1524
2H – Nickel Alloy 200 Work hardened Sheet & Plate 0.4–6.35 max. 1524
Nickel Alloy 200 Polished, brushed Plate & Sheet 0.5–4.0 max. 1524
Deco 0.3–3.5 max. 1524
Nickel Alloy 200 Coil 0.30–3.5 max. 1,524


AVAILABLE STOCK OF Nickel Alloy 200 Plates / Sheets / Coil:


Preview Products UNS DIN
Duplex Steel S32205 Sheet Nickel Alloy 200 Sheet N02200 Sheets 2.4066 Sheets
Duplex Steel S32205 Plates Nickel Alloy 200 Plate N02200 Plates 2.4066 Plates
Duplex Steel S32205 Coils Nickel Alloy 200 Coils N02200 Coil 2.4066 Coils
Duplex Steel S32205 Foils Nickel Alloy 200 Foils N02200 Foil 2.4066 Foils
Duplex Steel S32205 Strip Nickel Alloy 200 Strip N02200 Strips 2.4066 Strip


Equivalent Grades of Nickel Alloy 200 Plates / Sheets / Coil :


STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel 200 2.4066 N02200 NW 2200 NA 11 НП-2 N-100M Ni 99.2


Chemical Composition of Nickel Alloy 200 Plates / Sheets / Coil :


Grade C Mn Si S Cu Fe Ni
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min


Mechanical Properties of Nickel Alloy 200 Plates / Sheets / Coil :


Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %


Nickel Alloy 200 Plates / Sheets / Coil Price Per Kg (As per demand and manufacturer):


Price Rang by country  Sheet Price
(per kg)		 Plate Price
(per kg)		 Coil Price
(per kg)
Nickel Alloy 200 Stainless Steel Price in India (₹) 280 - 300  300 - 350  260 - 280
Nickel Alloy 200 Price in Malaysia (RM) 15.51 - 16.62 16.62 - 19.39 14.41 - 15.51
Nickel Alloy 200 Price in Singapore (S$) 5.02 - 5.38 5.38 - 6.28 4.66 - 5.02
Nickel Alloy 200 Price in UAE (Dirham) 13.51 - 14.47 14.47 - 16.88 12.54 - 13.51
Nickel Alloy 200 Stainless Steel Price in UK ( £) 2.77 - 2.97  2.97 - 3.46 2.57 - 2.77
Nickel Alloy 200 Stainless Steel Price in Europe (€) 3.25 - 3.49 3.49 - 4.07 3.02 - 3.25
Nickel Alloy 200 Price in USA ($) 3.68 - 3.94 3.94 - 4.60 3.42 - 3.68


author
Nickel Alloy 200 Plates / Sheets / Coil

Request the latest Nickel Alloy 200 Plates / Sheets / Coil Price List. Please Call +91 98691 88888 or Send an Email to sales@duplexsteel.org for Nickel Alloy 200, 2.4066 Pipe Plates / Sheets / Coil Ready stock information and updated price list.

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Chemical tanks
  • Pulp & Paper Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Desalination
  • Architecture and Construction
  • Food Processing Equipment
  • Biofuels plant
  • Cargo tanks for ships and trucks
  • Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
  • Digester in sulphate and sulfite plants, blow tanks, blow lines

DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Nickel Alloy 200 Sheets, Plates & Coils | UNS N02200 Sheets, Plates & Coils​ to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Nickel Alloy 200 Sheets, Plates & Coils | UNS N02200 Sheets, Plates & Coils to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo
