INCONEL 600 PLATES / SHEETS

Plates / Sheets
Duplex Steel


Products

Download brochure

Here is some useful documents


Table of Contents :

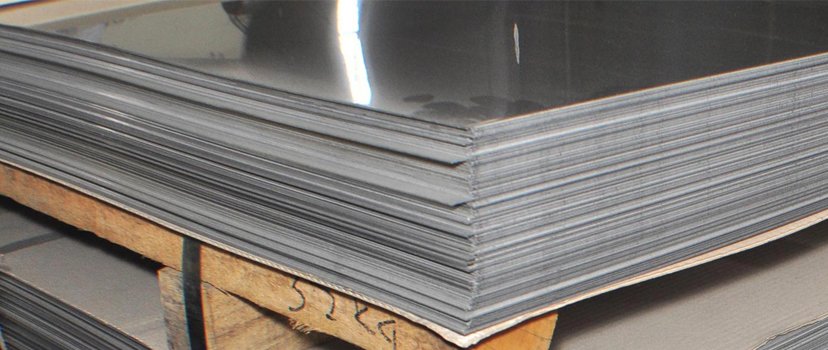

Inconel 600-sheet-plate

Inconel ASTM B168 UNS N06600 sheets, Inconel UNS N06600 Sheets, Alloy 600 Cold Rolled Plates in south Africa, Inconel UNS N06600 Hot Rolled Plates Stockholder in India.

Inconel Grade 600 is a commonly used chromium and nickel austenitic steel alloy, which is non-magnetic in nature. These Inconel 600 Slatting Coils | UNS N06600 is also being considered in advanced reactor concepts because of its high allowable design strength at elevated temperatures, especially between the ranges of 1200 Degree F – 1400 Degree F (649 Degree C – 760 Degree C).

We also supply and export superior quality Inconel 600 Perforated Coils which is an excellent choice for its tensile strength, high resistance to corrosion, and high fabrication ability and its commenly used in screens, filters, diffusers, strainers, washer/dryer drums, and medical equipment. Our Inconel 600 Sheets are widely used in applications where high stress bearing trait is required, thus these sheets have vast uses in the automobile as well as aircraft industry.

SPECIFICATIONS of Inconel 600 Plates / Sheets / Coil :


Grade Inconel 600 | UNS N06600
Standard ASTM B168 / ASME SB168
Thickness 0.1mm To 100 mm
Size 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form Sheets, Plates, Coils, Slatting Coils, Perforated Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Applications Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry

Inconel ASTM B168 UNS N06600 Sheets in USA, Inconel UNS N06600 seamless Slitting Coil supplier in Mumbai.


TYPE of Inconel 600 PLATES / SHEETS / COILS:

Inconel 600 Sheets
  • Alloy 600 Sheets
  • UNS N06600 Sheets
  • Werkstoff Nr. 2.4816 Sheets
  • JIS NCF 600 Sheets
  • ASTM B168 Inconel 600 Sheets
  • ISO Certified Alloy 600 Sheets
  • ASME SB168 Alloy 600 Sheets
Inconel 600 plates
  • Alloy 600 Plates
  • UNS N06600 Plates
  • Werkstoff Nr. 2.4816 Plates
  • JIS NCF 600 Plates
  • ASTM B168 Inconel 600 Plates
  • ISO Certified Alloy 600 Plates
  • ASME SB168 Alloy 600 Plates
Inconel 600 Coil
  • Alloy 600 Coils
  • UNS N06600 Coils
  • Werkstoff Nr. 2.4816 Coils
  • JIS NCF 600 Coils
  • ASTM B168 Inconel 600 Coils
  • ISO Certified Alloy 600 Coils
  • ASME SB168 Alloy 600 Coils
Inconel 600 Foils
  • Alloy 600 Foils
  • UNS N06600 Foils
  • Werkstoff Nr. 2.4816 Foils
  • JIS NCF 600 Foils
  • ASTM B168 Inconel 600 Foils
  • ISO Certified Alloy 600 Foils
  • ASME SB168 Alloy 600 Foils
Inconel 600 Rolls
  • Alloy 600 Rolls
  • UNS N06600 Rolls
  • Werkstoff Nr. 2.4816 Rolls
  • JIS NCF 600 Rolls
  • ASTM B168 Inconel 600 Rolls
  • ISO Certified Alloy 600 Rolls
  • ASME SB168 Alloy 600 Rolls
Inconel 600 Chequered Plate
  • Alloy 600 Chequered Plate
  • UNS N06600 Chequered Plate
  • Werkstoff Nr. 2.4816 Chequered Plate
  • JIS NCF 600 Chequered Plate
  • ASTM B168 Inconel 600 Chequered Plate
  • ISO Certified Alloy 600 Chequered Plate
  • ASME SB168 Alloy 600 Chequered Plate
Inconel 600 shim sheet
  • Alloy 600 Shim Sheet
  • UNS N06600 Shim Sheet
  • Werkstoff Nr. 2.4816 Shim Sheet
  • JIS NCF 600 Shim Sheet
  • ASTM B168 Inconel 600 Shim Sheet
  • ISO Certified Alloy 600 Shim Sheet
  • ASME SB168 Alloy 600 Shim Sheet
Inconel 600 Perforated Sheet
  • Alloy 600 Perforated Sheet
  • UNS N06600 Perforated Sheet
  • Werkstoff Nr. 2.4816 Perforated Sheet
  • JIS NCF 600 Perforated Sheet
  • ASTM B168 Inconel 600 Perforated Sheet
  • ISO Certified Alloy 600 Perforated Sheet
  • ASME SB168 Alloy 600 Perforated Sheet
Inconel 600 Strip
  • Alloy 600 Strip
  • UNS N06600 Strip
  • Werkstoff Nr. 2.4816 Strip
  • JIS NCF 600 Strip
  • ASTM B168 Inconel 600 Strip
  • ISO Certified Alloy 600 Strip
  • ASME SB168 Alloy 600 Strip
Inconel 600 circle
  • Alloy 600 Circle
  • UNS N06600 Circle
  • Werkstoff Nr. 2.4816 Circle
  • JIS NCF 600 Circle
  • ASTM B168 Inconel 600 Circle
  • ISO Certified Alloy 600 Circle
  • ASME SB168 Alloy 600 Circle
Inconel 600 Rings
  • Alloy 600 Ring
  • UNS N06600 Ring
  • Werkstoff Nr. 2.4816 Ring
  • JIS NCF 600 Ring
  • ASTM B168 Inconel 600 Ring
  • ISO Certified Alloy 600 Ring
  • ASME SB168 Alloy 600 Ring
Inconel 600 Flat
  • Alloy 600 Flats
  • UNS N06600 Flats
  • Werkstoff Nr. 2.4816 Flats
  • JIS NCF 600 Flats
  • ASTM B168 Inconel 600 Flats
  • ISO Certified Alloy 600 Flats
  • ASME SB168 Alloy 600 Flats


Dimensions of Inconel 600 PLATES / SHEETS / COILS :

Inconel 600-sheet-dimensions
Material Size Thickness
PLATES / SHEETS / COILS 1000 mm x 2000 mm0.1mm To 100 mm Thickness
1220 mm x 2440 mm (4' x 8')
1250 mm x 2500 mm
1500 mm x 3000 mm
2000 mm x 4000 mm
2000 mm x 2000 mm

Circle cutting in Inconel 600 perforated sheets up to 1000mm diameter. :
Hole Dia (in mm) Hole Centres
(in mm)		 O/A Finish Thk Full Sheet Size
(in mm)
0.75 1.5 23% 2B 0.6 2000 x 1000
1 2 23% 2B 1.0 2000 x 1000
1.5 2.6 30% 2B 1.0 2000 x 1000
2 3.5 30% 2B 1.0 2000 x 1000
2 3.5 30% 2B 1.0 2000 x 1000
3 5 33% 2B 1.0 2000 x 1000
4 5.6 46% 2B 1.0 2000 x 1000
5 8 35% 2B 1.0 2000 x 1000
6 8 51% 2B 1.0 2000 x 1000
8 10 58% 2B 1,0 2000 x 1000

PLAIN AND POLISHED Inconel 600 Sheet
PRODUCT FINISH THICKNESS MM MAX SHEET SIZE MM
Inconel 600 Plain 2B 0.9 2000 x 1000
Bright 0.9 2000 x 1000
Brushed Finish 0.9, 1.2 2000 x 1000, 2500 x 1250
Rimex Super Mirror 0.8, 1.2 2400 x 1200, 2500 x 1250
Embossed 0.8, 1.0 2500 x 1250


SIZE of Inconel 600 PLATES / SHEETS / COILS:


Type of Inconel 600 Plate Imperial size
Surface finish Thickness (in) Width (in)
1 – Inconel 600 Hot rolled, heat treated, pickled Plate & Sheet .1000 – .3750 max. 72
2R – Inconel 600 Cold-rolled, bright-annealed Sheet & Plate 0.002–0.06 0.118–25.551
2H – Inconel 600 Work hardened Plate & Sheet 0.002–0.06 0.118–24.803
2B – Inconel 600 Cold rolled, heat treated, pickled, skin passed Sheet & Plate 10–24 max. 72*
2D – Inconel 600 Cold rolled, heat treated, pickled Plate & Sheet 12–24 max. 60
BA Mexinox only 18–28 max. 48
Deco Rolled-On Mexinox only 14–28 max. 48
Inconel 600 Polished Plate & Sheet (not brushed) 11–24 max. 60
Temper rolled Mexinox only 13–29 max. 48


Size of Inconel 600 Plate Metric :
Surface finish Thickness (mm) Width (mm)
Inconel 600 1D – Hot rolled, heat treated, pickled Plate & Sheet 2.4–12.7 max. 2032
2R – Inconel 600 Cold-rolled, bright-annealed Sheet & Plate 0.05–1.50 3–649
2H – Inconel 600 Work hardened Plate & Sheet 0.05–1.50 3–630
2B – Inconel 600 Cold rolled, heat treated, pickled, skin passed Sheet & Plate 0.25–8.0 max. 2032
2D – Inconel 600 Cold rolled, heat treated, pickled Plate & Sheet 0.4–6.35 max. 1524
2E – Inconel 600 Cold rolled, heat treated, mechanically descaled Sheet & Plate 0.4–8.0 max. 2032
2R – Inconel 600 Cold rolled, bright annealed Plate & Sheet 0.25–3.5 max. 1524
2H – Inconel 600 Work hardened Sheet & Plate 0.4–6.35 max. 1524
Inconel 600 Polished, brushed Plate & Sheet 0.5–4.0 max. 1524
Deco 0.3–3.5 max. 1524
Inconel 600 Coil 0.30–3.5 max. 1,524


AVAILABLE STOCK OF Inconel 600 Plates / Sheets / Coil:


Preview Products UNS DIN
Duplex Steel S32205 Sheet Inconel 600 Sheet N06600 Sheets 2.4816 Sheets
Duplex Steel S32205 Plates Inconel 600 Plate N06600 Plates 2.4816 Plates
Duplex Steel S32205 Coils Inconel 600 Coils N06600 Coil 2.4816 Coils
Duplex Steel S32205 Foils Inconel 600 Foils N06600 Foil 2.4816 Foils
Duplex Steel S32205 Strip Inconel 600 Strip N06600 Strips 2.4816 Strip


Equivalent Grades of Inconel 600 Plates / Sheets / Coil :


STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe


Chemical Composition of Inconel 600 Plates / Sheets / Coil :


Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00


Mechanical Properties of Inconel 600 Plates / Sheets / Coil :


Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %


Inconel 600 Plates / Sheets / Coil Price - 2023 Updated :


Inconel 600 Sheet Plate Price/kg
Inconel 600 Plate 2500₹
Inconel Plate 2600₹
Inconel 600 Sheet 3000₹
ASTM B168 Inconel 600 Plate 3500₹
UNS N06600 Plate 4000₹

Note: Above price list updated as per 2023 (Price will Fluctuate as per Market).



author
Inconel 600 Plates / Sheets / Coil

Request the latest Inconel 600 Plates / Sheets / Coil Price List. Please Call +91 98691 88888 or Send an Email to sales@duplexsteel.org for Inconel 600, 2.4816 Pipe Plates / Sheets / Coil Ready stock information and updated price list.

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Chemical tanks
  • Pulp & Paper Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Desalination
  • Architecture and Construction
  • Food Processing Equipment
  • Biofuels plant
  • Cargo tanks for ships and trucks
  • Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
  • Digester in sulphate and sulfite plants, blow tanks, blow lines

DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Inconel 600 Sheets, Plates & Coils | UNS N06600 Sheets, Plates & Coils​ to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Inconel 600 Sheets, Plates & Coils | UNS N06600 Sheets, Plates & Coils to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo
